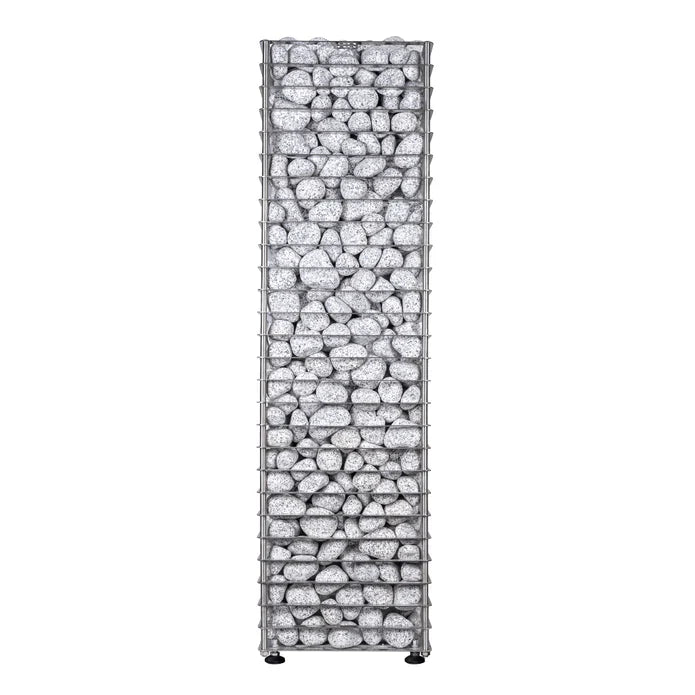

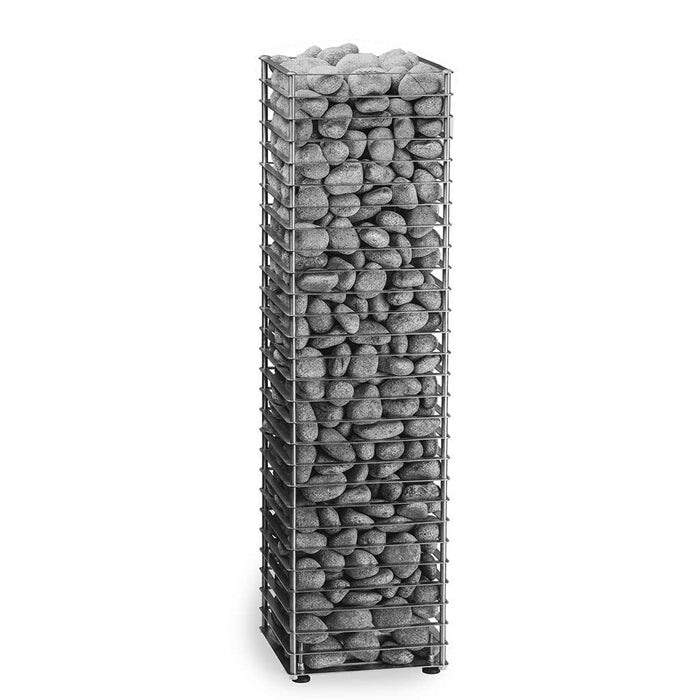

HUUM CLIFF Electric Sauna Heater 6/9/10.5kW

HUUM CLIFF Electric Sauna Heater 6/9/10.5kW

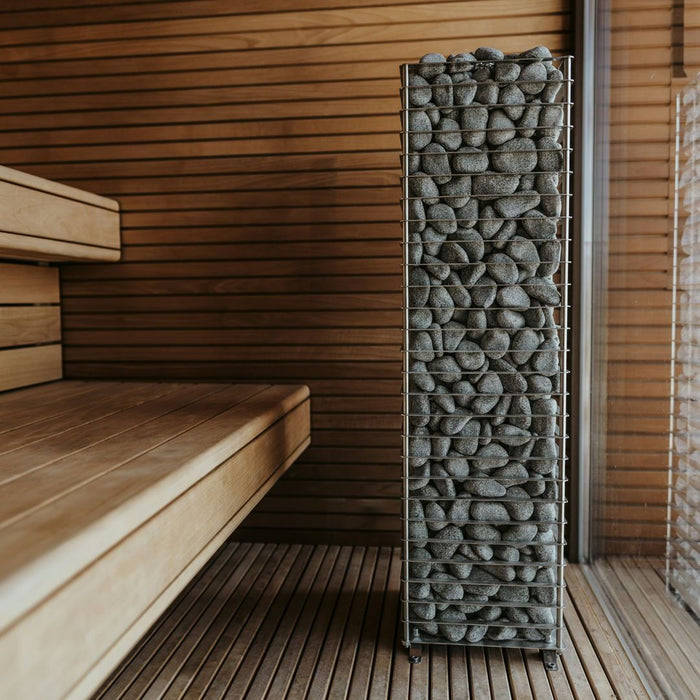

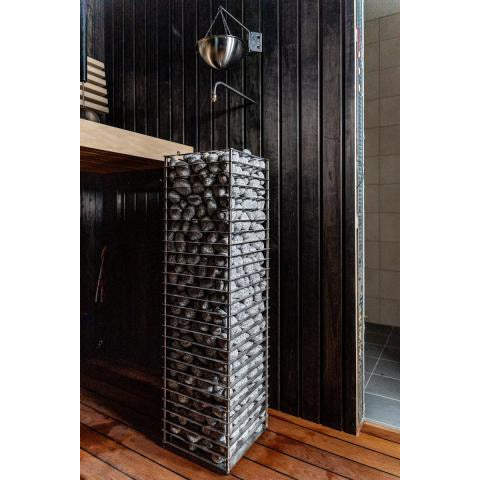

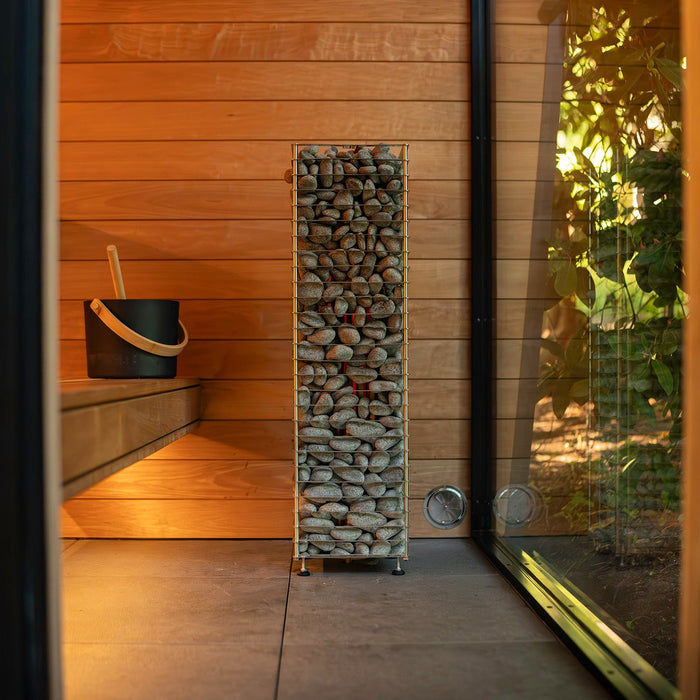

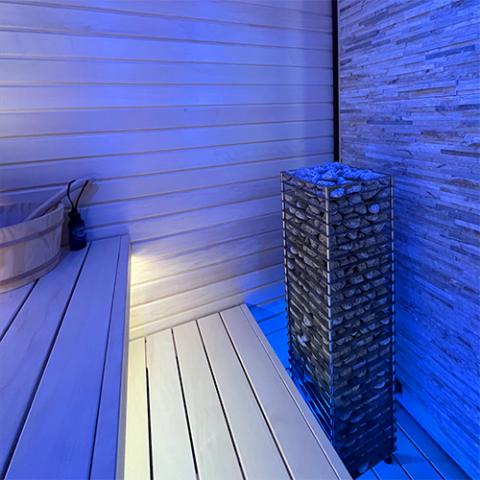

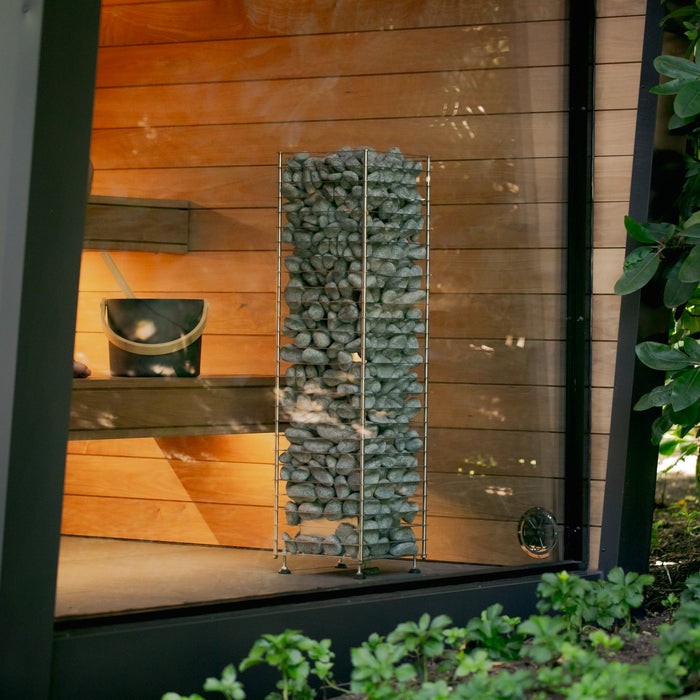

A slim electric sauna heater with remarkably small safety distances, which makes it perfect for saunas with limited space. The organic and minimalist design makes it a beautiful focal point of your sauna. This compact heater performs as well as it looks with a max temp of 230F and Wi-Fi control capability.

Features

• For sauna rooms from 176-600 cu. ft.
• Slim design, ideal for saunas with limited space
• Settable temperature range of 122-230F
• Fast heat up times: ~20-30 minutes
• 240V/1PH
• High stone capacity for steady heat

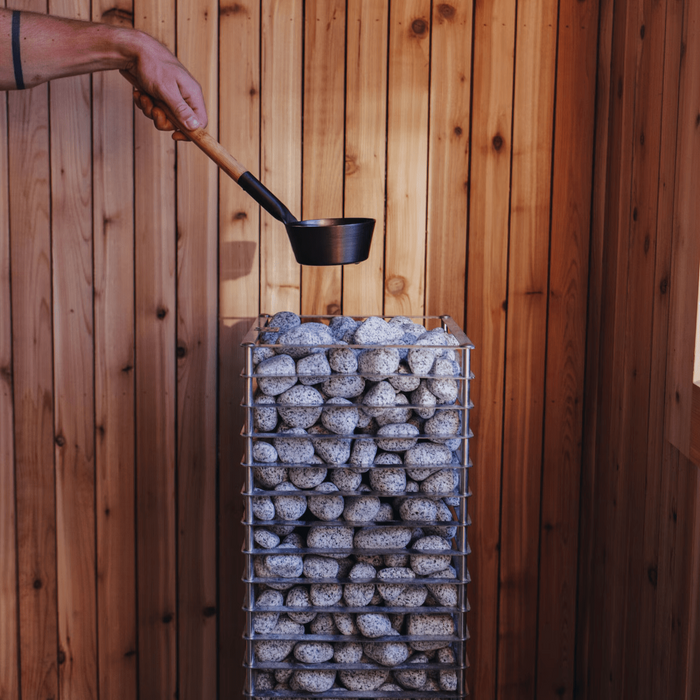

• Pour water on stones for steam

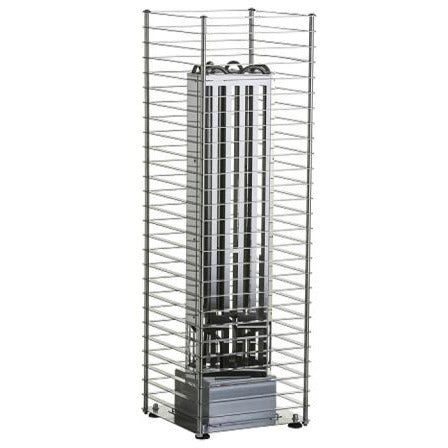

• Stainless steel construction

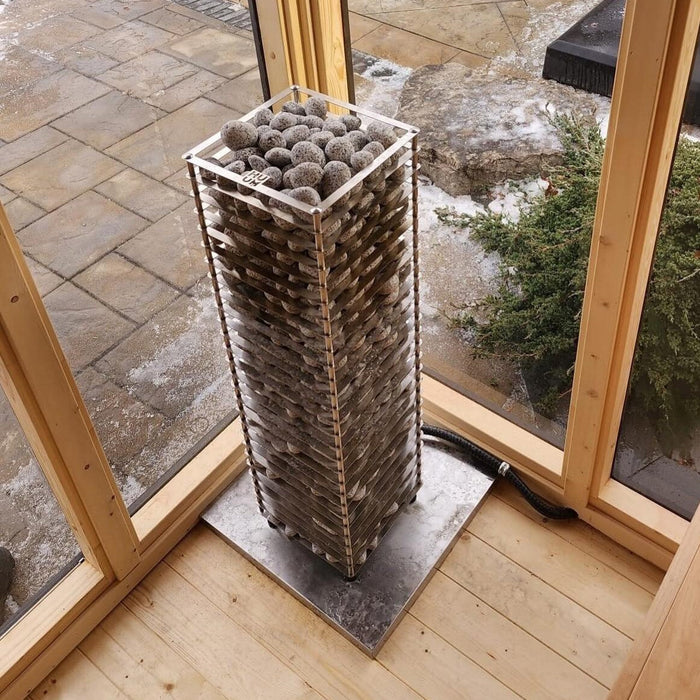

• Floor Installation

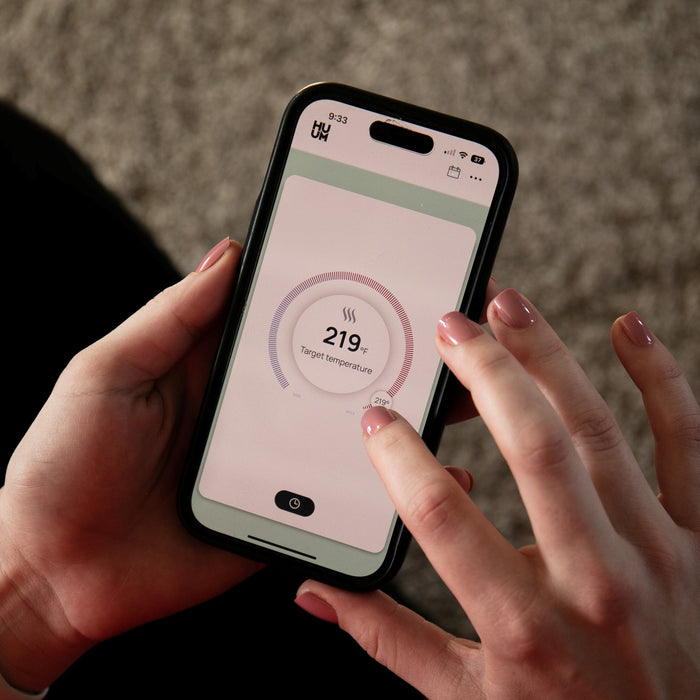

• Optional Wi-Fi to control from your mobile phone
• Made in Estonia

Includes

Included

• Sauna heater
• Installation and operation manual
• 5-Year manufacturers warranty

Add-Ons

The following options should be considered with your heater purchase:

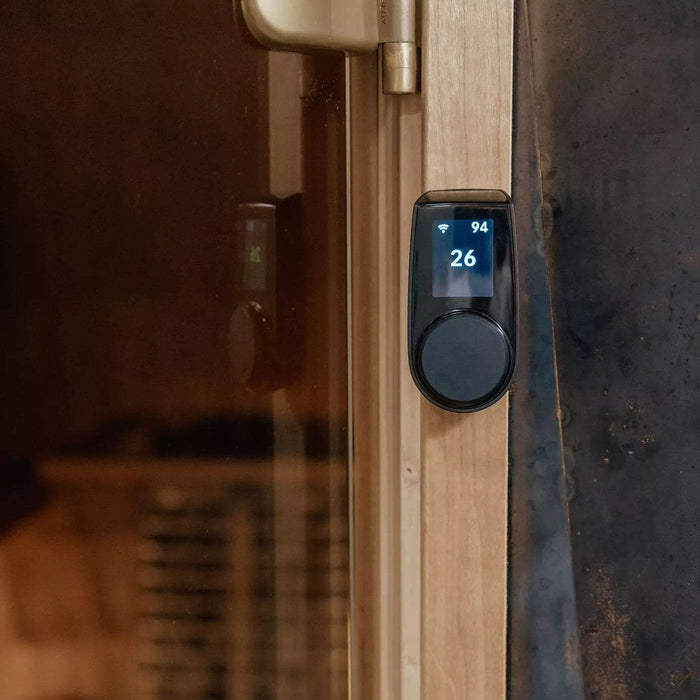

• UKU Controller (required: multiple options incl Wi-Fi capable)
• 5 boxes (165 lbs) of 2-4" rounded olivine sauna stones

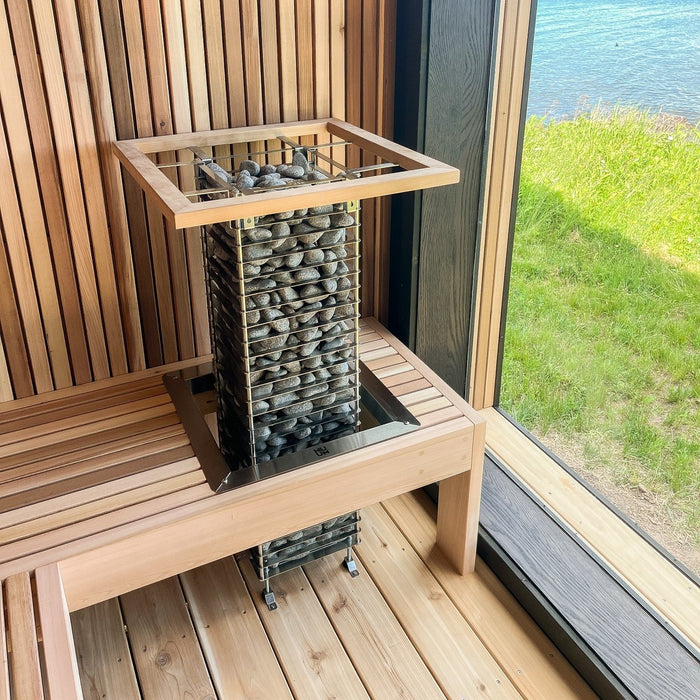

• Safety Railing (optional; protects against accidental contact with heater)

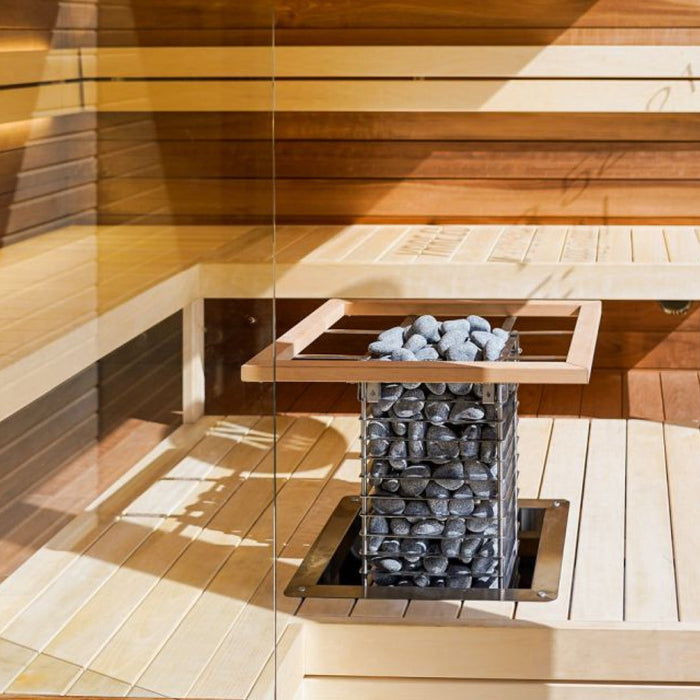

• Embedding Flange (optional; for recessing it into the sauna bench)
• Reflector (optional: allows heater to be installed closer to the wall of the sauna; reduces safety clearance by half)

Specifications

Specification

All CLIFF:

• Voltage/Phase: 240V/1PH
• Dimensions: 10.6"W x 10.6"D x 38.4" Height
• Heater Weight: 35 lbs
• Stone Capacity: 330 lbs (130 lbs for 3.5kW)
• Min/Max Temperature: 104 F / 230 F

CLIFF 6 kW:

• Installation: Free-Standing
• Sauna room: 176-353 ft³

• Amps: 25 A

CLIFF 9 kW:

• Installation: Free-Standing
• Sauna room: 317-529 ft³

• Amps: 37.5 A

CLIFF 10.5 kW:

• Installation: Free-Standing
• Sauna room: 353-600 ft³

• Amps: 43.75 A

Minimum Safety Clearances:

• CLIFF 6: Safety Distances - A: 2.36" - B: 15.35" - H: 38.4"
• CLIFF 9: Safety Distances - A: 9.45" - B: 29.5" - H: 38.4"
• CLIFF 10.5: Safety Distances - A: 15" - B: 40.5" - H: 38.4"
